Imported schema toldsystemet_DS_v1.xsd
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Properties
attribute form default unqualified
element form default qualified
version 1.1.6

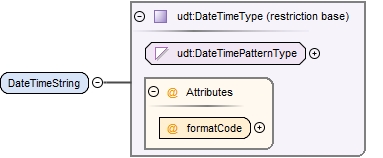

Element AdditionalDocumentEffectiveDateTimeType / DateTimeString
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#DateTimePatternTypeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType_formatCodeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType
Type restriction of udt:DateTimeType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
formatCode udt:FormatCodeType required
Source

<xs:element name="DateTimeString">
  <xs:complexType>
    <xs:simpleContent>
      <xs:restriction base="udt:DateTimeType">
        <xs:maxLength value="35"/>
      </xs:restriction>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element PreviousDocumentAcceptanceDateTimeType / DateTimeString
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#DateTimePatternTypeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType_formatCodeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType
Type restriction of udt:DateTimeType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
formatCode udt:FormatCodeType required
Source

<xs:element name="DateTimeString">
  <xs:complexType>
    <xs:simpleContent>
      <xs:restriction base="udt:DateTimeType">
        <xs:maxLength value="35"/>
      </xs:restriction>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element DeclarationAcceptanceDateTimeType / DateTimeString
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#DateTimePatternTypeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType_formatCodeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType
Type restriction of udt:DateTimeType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
formatCode udt:FormatCodeType required
Source

<xs:element name="DateTimeString">
  <xs:complexType>
    <xs:simpleContent>
      <xs:restriction base="udt:DateTimeType">
        <xs:maxLength value="35"/>
      </xs:restriction>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element DeclarationIssueDateTimeType / DateTimeString
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#DateTimePatternTypeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType_formatCodeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType
Type restriction of udt:DateTimeType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
formatCode udt:FormatCodeType required
Source

<xs:element name="DateTimeString">
  <xs:complexType>
    <xs:simpleContent>
      <xs:restriction base="udt:DateTimeType">
        <xs:maxLength value="35"/>
      </xs:restriction>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element GoodsShipmentExitDateTimeType / DateTimeString
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#DateTimePatternTypeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType_formatCodeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType
Type restriction of udt:DateTimeType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
formatCode udt:FormatCodeType required
Source

<xs:element name="DateTimeString">
  <xs:complexType>
    <xs:simpleContent>
      <xs:restriction base="udt:DateTimeType">
        <xs:maxLength value="35"/>
      </xs:restriction>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element InvoiceIssueDateTimeType / DateTimeString
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#DateTimePatternTypeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType_formatCodeUnqualifiedDataType_6_DMS_xsd.tmp#DateTimeType
Type restriction of udt:DateTimeType
Type hierarchy
Properties
content complex
Attributes
QName Type Use
formatCode udt:FormatCodeType required
Source

<xs:element name="DateTimeString">
  <xs:complexType>
    <xs:simpleContent>
      <xs:restriction base="udt:DateTimeType">
        <xs:maxLength value="35"/>
      </xs:restriction>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Complex Type DeclarationFunctionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>017</WCOID>
<WCOFormat>n..2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DeclarationFunctionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>017</WCOID>
      <WCOFormat>n..2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="2"/>
      <xs:pattern value="([0-9])*"/>
      <xs:enumeration value="9"/>
      <xs:enumeration value="4"/>
      <xs:enumeration value="1"/>
      <xs:enumeration value="24"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationProcedureCategoryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>???</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DeclarationProcedureCategoryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>???</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value="([a-zA-Z0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationFunctionalReferenceIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D026</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DeclarationFunctionalReferenceIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D026</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D014</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Element Declaration/ID
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DeclarationIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D014</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D013</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DeclarationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D013</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

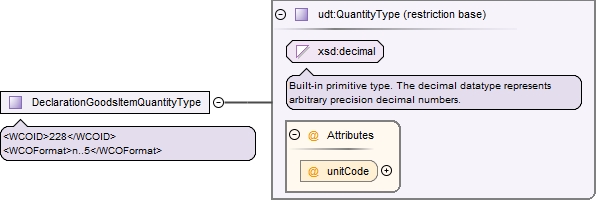

Complex Type DeclarationGoodsItemQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>228</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="DeclarationGoodsItemQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>228</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="5"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationDeclarationOfficeIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>065</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DeclarationDeclarationOfficeIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>065</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

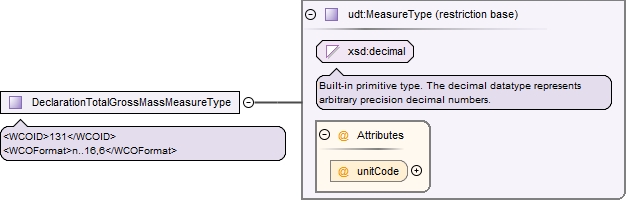

Complex Type DeclarationTotalGrossMassMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>131</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="DeclarationTotalGrossMassMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>131</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SubmitterNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R058</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="SubmitterNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R058</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SubmitterIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R059</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="SubmitterIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R059</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type AmendmentSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="AmendmentSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>

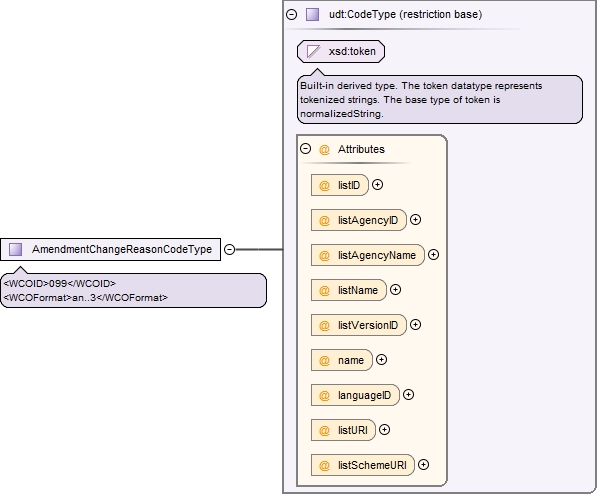

Complex Type AmendmentChangeReasonCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>099</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AmendmentChangeReasonCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>099</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

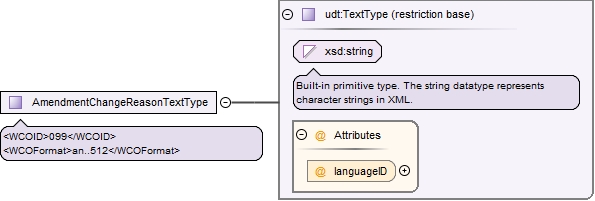

Complex Type AmendmentChangeReasonTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>099</WCOID>
<WCOFormat>an..512</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AmendmentChangeReasonTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>099</WCOID>
      <WCOFormat>an..512</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="1"/>
      <xs:maxLength value="512"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AgentIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R004</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="AgentIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R004</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

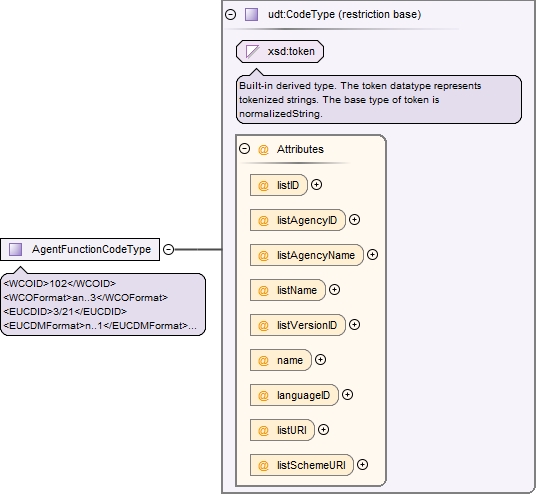

Complex Type AgentFunctionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>102</WCOID>
<WCOFormat>an..3</WCOFormat>
<EUCDID>3/21</EUCDID>
<EUCDMFormat>n..1</EUCDMFormat>
<EUCDMDescription>2 -> Representative (direct representation within the meaning of Article 18(1) of the Code) 3 -> Representative (indirect representation within the meaning of Article 18(1) of the Code)</EUCDMDescription>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AgentFunctionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>102</WCOID>
      <WCOFormat>an..3</WCOFormat>
      <EUCDID>3/21</EUCDID>
      <EUCDMFormat>n..1</EUCDMFormat>
      <EUCDMDescription>2 -> Representative (direct representation within the meaning of Article 18(1) of the Code) 3 -> Representative (indirect representation within the meaning of Article 18(1) of the Code)</EUCDMDescription>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="1"/>
      <xs:pattern value="([0-9])*"/>
      <xs:enumeration value="2"/>
      <xs:enumeration value="3"/>
    </xs:restriction>
    <!--<xs:maxLength value="3"/>-->
    <!--<xs:pattern value=".*[^\s].*"/>-->
  </xs:simpleContent>
</xs:complexType>

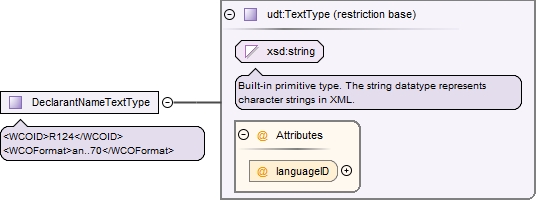

Complex Type DeclarantNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R124</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="DeclarantNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R124</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="3"/>
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarantIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R123</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DeclarantIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R123</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AddressCityNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>241</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AddressCityNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>241</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="2"/>
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

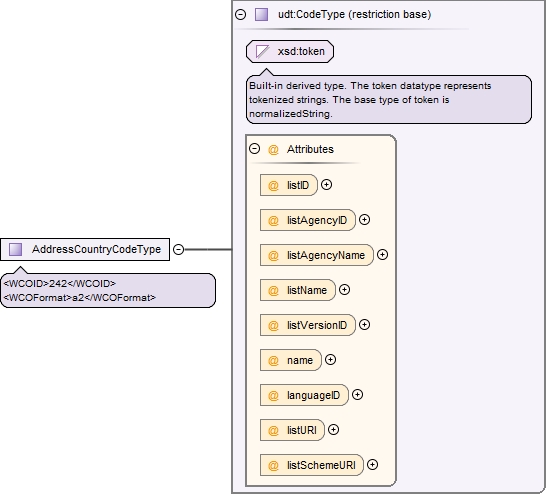

Complex Type AddressCountryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>242</WCOID>
<WCOFormat>a2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AddressCountryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>242</WCOID>
      <WCOFormat>a2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="2"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AddressLineTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>239</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AddressLineTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>239</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="3"/>
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AddressPostcodeIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>245</WCOID>
<WCOFormat>an..9</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="AddressPostcodeIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>245</WCOID>
      <WCOFormat>an..9</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:minLength value="2"/>
      <xs:maxLength value="9"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

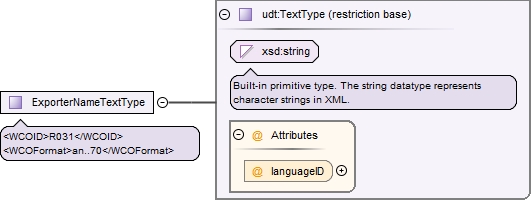

Complex Type ExporterNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R031</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ExporterNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R031</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="3"/>
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type AdditionalDocumentSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="AdditionalDocumentSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>

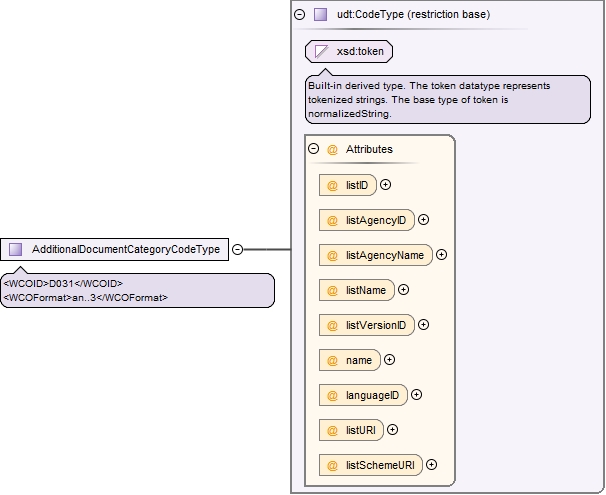

Complex Type AdditionalDocumentCategoryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D031</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AdditionalDocumentCategoryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D031</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

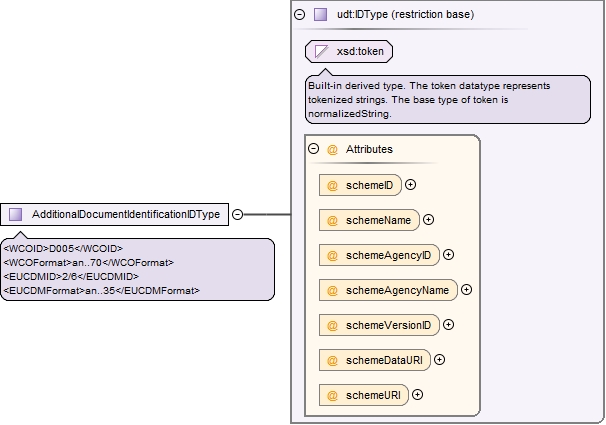

Complex Type AdditionalDocumentIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D005</WCOID>
<WCOFormat>an..70</WCOFormat>
<EUCDMID>2/6</EUCDMID>
<EUCDMFormat>an..35</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="AdditionalDocumentIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D005</WCOID>
      <WCOFormat>an..70</WCOFormat>
      <EUCDMID>2/6</EUCDMID>
      <EUCDMFormat>an..35</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <!--<xs:maxLength value="70"/>-->
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

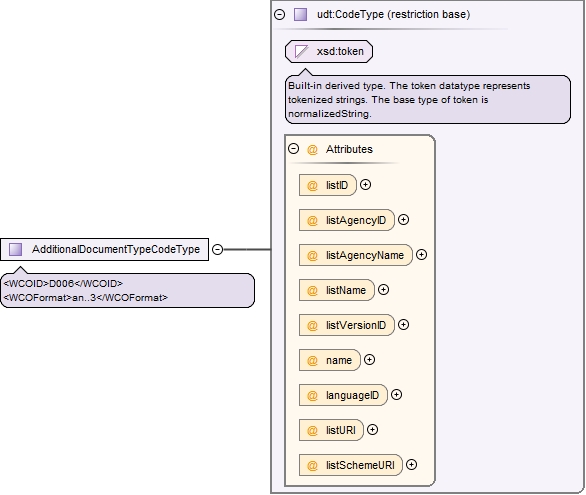

Complex Type AdditionalDocumentTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D006</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AdditionalDocumentTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D006</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type AdditionalInformationSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="AdditionalInformationSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type AdditionalInformationStatementCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>226</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AdditionalInformationStatementCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>226</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

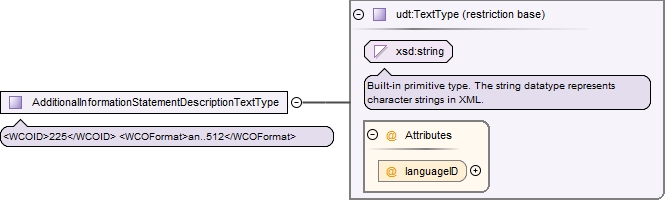

Complex Type AdditionalInformationStatementDescriptionTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>225</WCOID>
<WCOFormat>an..512</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AdditionalInformationStatementDescriptionTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>225</WCOID>
      <WCOFormat>an..512</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="512"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

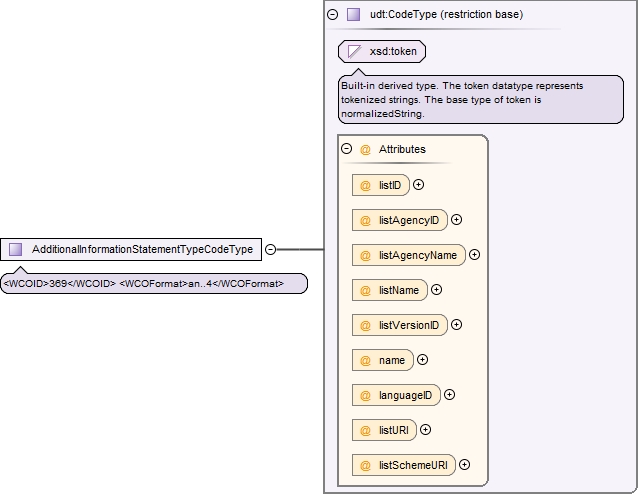

Complex Type AdditionalInformationStatementTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>369</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AdditionalInformationStatementTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>369</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GoodsLocationNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L016</WCOID>
<WCOFormat>an..256</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="GoodsLocationNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L016</WCOID>
      <WCOFormat>an..256</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="256"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

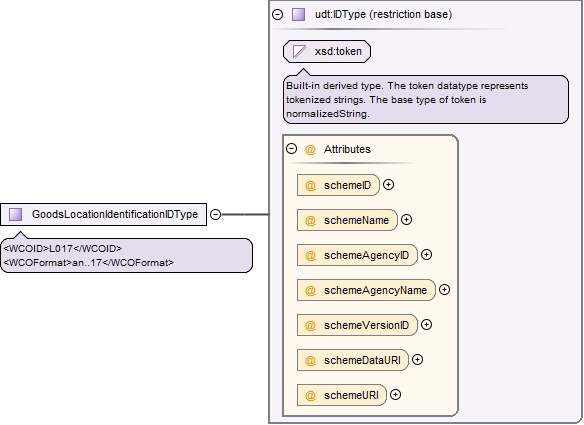

Complex Type GoodsLocationIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L017</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="GoodsLocationIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L017</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

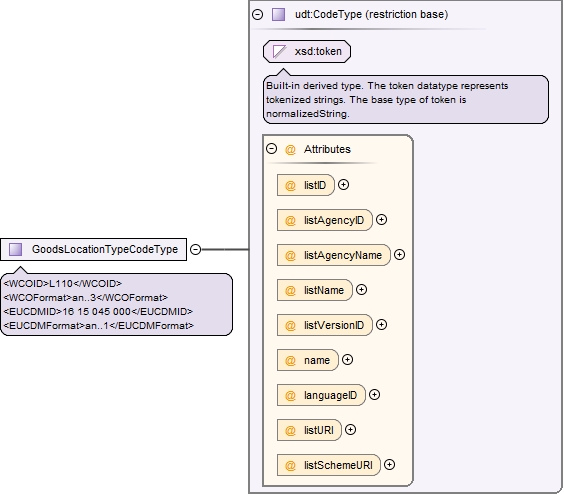

Complex Type GoodsLocationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L110</WCOID>
<WCOFormat>an..3</WCOFormat>
<EUCDMID>16 15 045 000</EUCDMID>
<EUCDMFormat>an..1</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="GoodsLocationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L110</WCOID>
      <WCOFormat>an..3</WCOFormat>
      <EUCDMID>16 15 045 000</EUCDMID>
      <EUCDMFormat>an..1</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="1"/>
      <xs:pattern value="A|B|C|D"/>
    </xs:restriction>
    <!--<xs:maxLength value="3"/>
                <xs:pattern value=".*[^\s].*"/>-->
  </xs:simpleContent>
  <!-- NOTES -->
</xs:complexType>

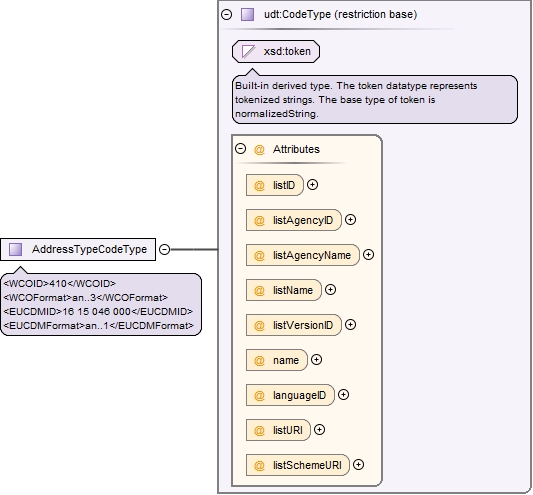

Complex Type AddressTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>410</WCOID>
<WCOFormat>an..3</WCOFormat>
<EUCDMID>16 15 046 000</EUCDMID>
<EUCDMFormat>an..1</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AddressTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>410</WCOID>
      <WCOFormat>an..3</WCOFormat>
      <EUCDMID>16 15 046 000</EUCDMID>
      <EUCDMFormat>an..1</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="1"/>
      <xs:pattern value="T|U|V|W|X|Y|Z"/>
      <!--<xs:maxLength value="3"/>
                <xs:pattern value=".*[^\s].*"/>-->
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

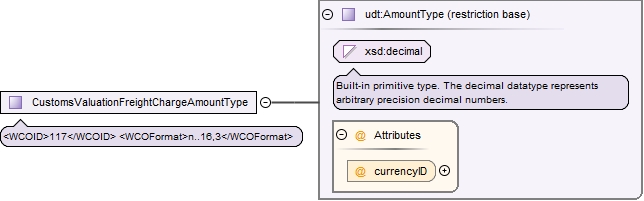

Complex Type CustomsValuationFreightChargeAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>117</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="CustomsValuationFreightChargeAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>117</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type DomesticDutyTaxPartySequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="DomesticDutyTaxPartySequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type DomesticDutyTaxPartyIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R119</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DomesticDutyTaxPartyIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R119</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DomesticDutyTaxPartyRoleCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R005</WCOID>
<WCOFormat>an..3</WCOFormat>
<EUCDMID>3/40</EUCDMID>
<EUCDMDescription>Role Code; Party; Description FR1; Importer; Person or persons designated or recognised as liable for the payment of value added tax by the Member State of importation in accordance with Article 201 of Directive 2006/112/EC FR2; Customer; Person liable for the payment of Value Added Tax on the intra-Union acquisition of goods in accordance with Article 200 of Directive 2006/112/EC FR3; Tax Representative; Tax representative liable for the payment of value added tax in the Member State of importation appointed by the importer FR4; Holder of the deferred payment authorisation; The taxable person or the person liable for payment or another person that has received deferment of payment in accordance with Article 211 of Directive 2006/112/EC FR5; Vendor (IOSS); Taxable person making use of the special scheme for distance sales of goods imported from third countries and territories set out in Title XII Chapter 6 Section 4 of Directive 2006/112/EC and holder of the VAT identification number referred to in Article 369q therein. FR7; Taxable person or of the person liable for payment of VAT; VAT identification number of the taxable person or of the person liable for payment of VAT where the payment of VAT is postponed in accordance with Article 211 second subparagraph of Directive 2006/112/EC.</EUCDMDescription>

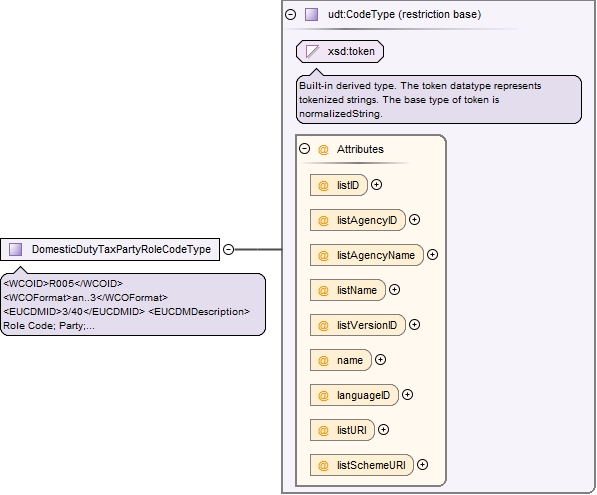

Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DomesticDutyTaxPartyRoleCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R005</WCOID>
      <WCOFormat>an..3</WCOFormat>
      <EUCDMID>3/40</EUCDMID>
      <EUCDMDescription>Role Code; Party; Description FR1; Importer; Person or persons designated or recognised as liable for the payment of value added tax by the Member State of importation in accordance with Article 201 of Directive 2006/112/EC FR2; Customer; Person liable for the payment of Value Added Tax on the intra-Union acquisition of goods in accordance with Article 200 of Directive 2006/112/EC FR3; Tax Representative; Tax representative liable for the payment of value added tax in the Member State of importation appointed by the importer FR4; Holder of the deferred payment authorisation; The taxable person or the person liable for payment or another person that has received deferment of payment in accordance with Article 211 of Directive 2006/112/EC FR5; Vendor (IOSS); Taxable person making use of the special scheme for distance sales of goods imported from third countries and territories set out in Title XII Chapter 6 Section 4 of Directive 2006/112/EC and holder of the VAT identification number referred to in Article 369q therein. FR7; Taxable person or of the person liable for payment of VAT; VAT identification number of the taxable person or of the person liable for payment of VAT where the payment of VAT is postponed in accordance with Article 211 second subparagraph of Directive 2006/112/EC.</EUCDMDescription>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
      <xs:enumeration value="FR1"/>
      <xs:enumeration value="FR2"/>
      <xs:enumeration value="FR3"/>
      <xs:enumeration value="FR4"/>
      <xs:enumeration value="FR5"/>
      <xs:enumeration value="FR7"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>

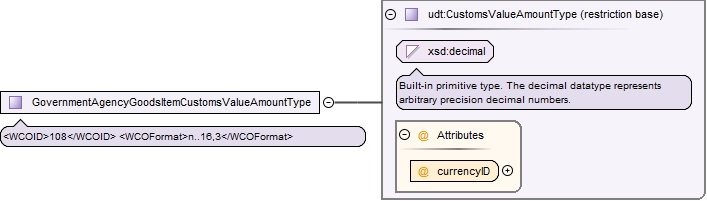

Complex Type GovernmentAgencyGoodsItemCustomsValueAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>108</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CustomsValueAmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CustomsValueAmountType
Type restriction of udt:CustomsValueAmountType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="GovernmentAgencyGoodsItemCustomsValueAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>108</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CustomsValueAmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type GovernmentAgencyGoodsItemSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="GovernmentAgencyGoodsItemSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>

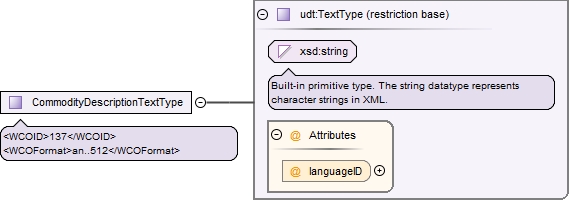

Complex Type CommodityDescriptionTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>137</WCOID>
<WCOFormat>an..512</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="CommodityDescriptionTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>137</WCOID>
      <WCOFormat>an..512</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="512"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type CommodityClassificationSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="CommodityClassificationSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>

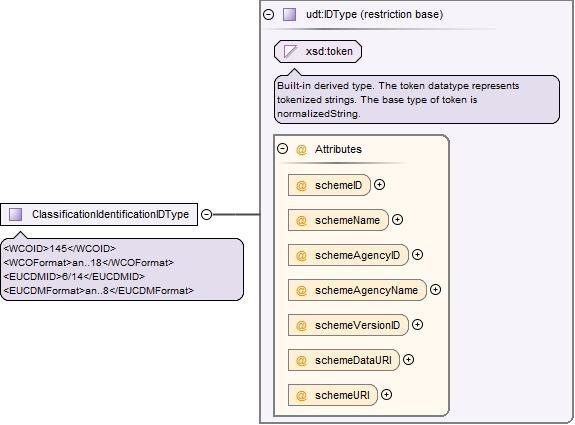

Complex Type ClassificationIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>145</WCOID>
<WCOFormat>an..18</WCOFormat>
<EUCDMID>6/14</EUCDMID>
<EUCDMFormat>an..8</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ClassificationIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>145</WCOID>
      <WCOFormat>an..18</WCOFormat>
      <EUCDMID>6/14</EUCDMID>
      <EUCDMFormat>an..8</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <!--<xs:maxLength value="18"/>-->
      <xs:maxLength value="6"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ClassificationIdentificationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID/>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ClassificationIdentificationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID/>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GoodsMeasureGrossMassMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>126</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="GoodsMeasureGrossMassMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>126</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GoodsMeasureTariffQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>130</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="GoodsMeasureTariffQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>130</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ConsignorNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R020</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ConsignorNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R020</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type GovernmentProcedureSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="GovernmentProcedureSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type GovernmentProcedureCurrentCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>166</WCOID>
<WCOFormat>an..7</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="GovernmentProcedureCurrentCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>166</WCOID>
      <WCOFormat>an..7</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:minLength value="2"/>
      <xs:maxLength value="7"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GovernmentProcedurePreviousCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>161</WCOID>
<WCOFormat>an..7</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="GovernmentProcedurePreviousCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>161</WCOID>
      <WCOFormat>an..7</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="7"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type PackagingSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="PackagingSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type PackagingQuantityQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>144</WCOID>
<WCOFormat>n..8</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Used by
Attributes
Source

<xs:complexType name="PackagingQuantityQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>144</WCOID>
      <WCOFormat>n..8</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="8"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type PreviousDocumentSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="PreviousDocumentSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type PreviousDocumentCategoryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D031</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="PreviousDocumentCategoryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D031</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PreviousDocumentIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D018</WCOID>
<WCOFormat>an..70</WCOFormat>
<EUCDMID>2/1</EUCDMID>
<EUCDMFormat>an..35</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="PreviousDocumentIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D018</WCOID>
      <WCOFormat>an..70</WCOFormat>
      <EUCDMID>2/1</EUCDMID>
      <EUCDMFormat>an..35</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <!--<xs:maxLength value="70"/>-->
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PreviousDocumentTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D019</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="PreviousDocumentTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D019</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type PreviousDocumentLineNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>171</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Used by
Source

<xs:simpleType name="PreviousDocumentLineNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>171</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type UCRTraderAssignedReferenceIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>009</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="UCRTraderAssignedReferenceIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>009</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ImporterNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R037</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Used by
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ImporterNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R037</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="3"/>
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ImporterIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R038</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Used by
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ImporterIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R038</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AdditionalDocumentEffectiveDateTimeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>276</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
Diagramtoldsystemet_DS_v1_xsd.tmp#AdditionalDocumentEffectiveDateTimeType_DateTimeString
Model
Children DateTimeString
Source

<xs:complexType name="AdditionalDocumentEffectiveDateTimeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>276</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="DateTimeString">
      <xs:complexType>
        <xs:simpleContent>
          <xs:restriction base="udt:DateTimeType">
            <xs:maxLength value="35"/>
          </xs:restriction>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
Complex Type AdditionalDocumentLPCOExemptionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>360</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AdditionalDocumentLPCOExemptionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>360</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AdditionalDocumentNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D028</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AdditionalDocumentNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D028</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type WriteOffPackagingQuantityQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>144</WCOID>
<WCOFormat>n..8</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Attributes
Source

<xs:complexType name="WriteOffPackagingQuantityQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>144</WCOID>
      <WCOFormat>n..8</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="8"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type WriteOffPackagingTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>141</WCOID>
<WCOFormat>an..2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="WriteOffPackagingTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>141</WCOID>
      <WCOFormat>an..2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="2"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PreviousDocumentAcceptanceDateTimeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>023</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
Diagramtoldsystemet_DS_v1_xsd.tmp#PreviousDocumentAcceptanceDateTimeType_DateTimeString
Model
Children DateTimeString
Source

<xs:complexType name="PreviousDocumentAcceptanceDateTimeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>023</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="DateTimeString">
      <xs:complexType>
        <xs:simpleContent>
          <xs:restriction base="udt:DateTimeType">
            <xs:maxLength value="35"/>
          </xs:restriction>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
Complex Type AddressCountrySubDivisionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>244</WCOID>
<WCOFormat>an..9</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AddressCountrySubDivisionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>244</WCOID>
      <WCOFormat>an..9</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="9"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AddressCountrySubDivisionNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>243</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AddressCountrySubDivisionNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>243</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AEOMutualRecognitionPartyIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R143</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="AEOMutualRecognitionPartyIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R143</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AEOMutualRecognitionPartyRoleCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R005</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AEOMutualRecognitionPartyRoleCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R005</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AgentNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R003</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AgentNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R003</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:minLength value="3"/>
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ArrivalTransportMeansIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T002</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ArrivalTransportMeansIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T002</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ArrivalTransportMeansIdentificationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T034</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ArrivalTransportMeansIdentificationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T034</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ArrivalTransportMeansModeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T020</WCOID>
<WCOFormat>n1</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ArrivalTransportMeansModeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T020</WCOID>
      <WCOFormat>n1</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="1"/>
      <xs:pattern value="([0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ArrivalTransportMeansNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T001</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ArrivalTransportMeansNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T001</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ArrivalTransportMeansTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T008</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ArrivalTransportMeansTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T008</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AuthenticationAuthenticationTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>104</WCOID>
<WCOFormat>an..256</WCOFormat>
<EUCDMID>1/8</EUCDMID>
<EUCDMFormat>an..35</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AuthenticationAuthenticationTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>104</WCOID>
      <WCOFormat>an..256</WCOFormat>
      <EUCDMID>1/8</EUCDMID>
      <EUCDMFormat>an..35</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="35"/>
      <!--<xs:maxLength value="256"/>-->
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AuthenticatorNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R007</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="AuthenticatorNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R007</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AuthorisationHolderCategoryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R145</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="AuthorisationHolderCategoryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R145</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type AuthorisationHolderIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R144</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="AuthorisationHolderIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R144</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BorderTransportMeansIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T006</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="BorderTransportMeansIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T006</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BorderTransportMeansIdentificationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T018</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="BorderTransportMeansIdentificationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T018</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BorderTransportMeansModeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T022</WCOID>
<WCOFormat>n1</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="BorderTransportMeansModeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T022</WCOID>
      <WCOFormat>n1</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="1"/>
      <xs:pattern value="([0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BorderTransportMeansNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T005</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="BorderTransportMeansNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T005</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BorderTransportMeansRegistrationNationalityCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T014</WCOID>
<WCOFormat>a2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="BorderTransportMeansRegistrationNationalityCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T014</WCOID>
      <WCOFormat>a2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="2"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BorderTransportMeansTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T010</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="BorderTransportMeansTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T010</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BuyerIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R010</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="BuyerIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R010</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type BuyerNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R009</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="BuyerNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R009</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type CarrierIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R012</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="CarrierIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R012</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type CarrierNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R011</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="CarrierNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R011</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ChargeDeductionChargesTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>371</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ChargeDeductionChargesTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>371</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ChargeDeductionOtherChargeDeductionAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>181</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="ChargeDeductionOtherChargeDeductionAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>181</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ClassificationBindingTariffReferenceIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>448</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ClassificationBindingTariffReferenceIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>448</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ClassificationNameCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>346</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ClassificationNameCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>346</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type CommunicationIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>240</WCOID>
<WCOFormat>an..50</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="CommunicationIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>240</WCOID>
      <WCOFormat>an..50</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="50"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type CommunicationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>253</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="CommunicationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>253</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ConsigneeIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R015</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ConsigneeIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R015</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ConsigneeNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R014</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ConsigneeNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R014</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ConsignmentContainerCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>096</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ConsignmentContainerCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>096</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
      <xs:enumeration value="0"/>
      <xs:enumeration value="1"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type ConsignmentItemSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Source

<xs:simpleType name="ConsignmentItemSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type ConsignorIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R021</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ConsignorIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R021</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ContactNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>246</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ContactNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>246</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type CurrencyExchangeCurrencyTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>135</WCOID>
<WCOFormat>a3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="CurrencyExchangeCurrencyTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>135</WCOID>
      <WCOFormat>a3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="3"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type CurrencyExchangeRateNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>118</WCOID>
<WCOFormat>n..12,5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 12
fractionDigits 5
Source

<xs:simpleType name="CurrencyExchangeRateNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>118</WCOID>
      <WCOFormat>n..12,5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="12"/>
    <xs:fractionDigits value="5"/>
  </xs:restriction>
</xs:simpleType>
Complex Type CustomsValuationMethodCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>122</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="CustomsValuationMethodCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>122</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DangerousGoodsUNDGIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>506</WCOID>
<WCOFormat>n..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DangerousGoodsUNDGIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>506</WCOID>
      <WCOFormat>n..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="4"/>
      <xs:pattern value="([0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationAcceptanceDateTimeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>023</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
Diagramtoldsystemet_DS_v1_xsd.tmp#DeclarationAcceptanceDateTimeType_DateTimeString
Model
Children DateTimeString
Source

<xs:complexType name="DeclarationAcceptanceDateTimeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>023</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="DateTimeString">
      <xs:complexType>
        <xs:simpleContent>
          <xs:restriction base="udt:DateTimeType">
            <xs:maxLength value="35"/>
          </xs:restriction>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
Complex Type DeclarationInvoiceAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>109</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="DeclarationInvoiceAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>109</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationIssueDateTimeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D011</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
Diagramtoldsystemet_DS_v1_xsd.tmp#DeclarationIssueDateTimeType_DateTimeString
Model
Children DateTimeString
Source

<xs:complexType name="DeclarationIssueDateTimeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D011</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="DateTimeString">
      <xs:complexType>
        <xs:simpleContent>
          <xs:restriction base="udt:DateTimeType">
            <xs:maxLength value="35"/>
          </xs:restriction>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
Complex Type DeclarationIssueLocationIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D012</WCOID>
<WCOFormat>an..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DeclarationIssueLocationIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D012</WCOID>
      <WCOFormat>an..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="5"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationLoadingListQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>013</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Attributes
Source

<xs:complexType name="DeclarationLoadingListQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>013</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="5"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationSpecificCircumstancesCodeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>504</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DeclarationSpecificCircumstancesCodeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>504</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DeclarationTotalPackageQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>146</WCOID>
<WCOFormat>n..8</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Attributes
Source

<xs:complexType name="DeclarationTotalPackageQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>146</WCOID>
      <WCOFormat>n..8</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="8"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DepartureTransportMeansIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T004</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DepartureTransportMeansIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T004</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DepartureTransportMeansIdentificationTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T029</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DepartureTransportMeansIdentificationTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T029</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DepartureTransportMeansModeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T021</WCOID>
<WCOFormat>n1</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DepartureTransportMeansModeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T021</WCOID>
      <WCOFormat>n1</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="1"/>
      <xs:pattern value="([0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DepartureTransportMeansNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T003</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="DepartureTransportMeansNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T003</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DepartureTransportMeansTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>T009</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DepartureTransportMeansTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>T009</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DestinationCountryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>465</WCOID>
<WCOFormat>a2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DestinationCountryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>465</WCOID>
      <WCOFormat>a2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="2"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DestinationRegionIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>477</WCOID>
<WCOFormat>an..9</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DestinationRegionIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>477</WCOID>
      <WCOFormat>an..9</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="9"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DutyTaxFeeAdValoremTaxBaseAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>116</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="DutyTaxFeeAdValoremTaxBaseAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>116</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DutyTaxFeeDeductAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>111</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="DutyTaxFeeDeductAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>111</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DutyTaxFeeDutyRegimeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>164</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DutyTaxFeeDutyRegimeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>164</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DutyTaxFeeQuotaOrderIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>401</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="DutyTaxFeeQuotaOrderIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>401</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type DutyTaxFeeSpecificTaxBaseQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>129</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Attributes
Source

<xs:complexType name="DutyTaxFeeSpecificTaxBaseQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>129</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type DutyTaxFeeTaxRateNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>115</WCOID>
<WCOFormat>an..17,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type udt:NumericType
Type hierarchy
Source

<xs:simpleType name="DutyTaxFeeTaxRateNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>115</WCOID>
      <WCOFormat>an..17,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType"/>
</xs:simpleType>
Complex Type DutyTaxFeeTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>113</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="DutyTaxFeeTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>113</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ExitOfficeIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>G005</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ExitOfficeIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>G005</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ExportCountryCountryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>062</WCOID>
<WCOFormat>a2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ExportCountryCountryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>062</WCOID>
      <WCOFormat>a2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="2"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ExporterIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R032</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ExporterIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R032</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type FreightPaymentMethodCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>098</WCOID>
<WCOFormat>an..3</WCOFormat>
<EUCDMID>4/8</EUCDMID>
<EUCDMFormat>an..1</EUCDMFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="FreightPaymentMethodCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>098</WCOID>
      <WCOFormat>an..3</WCOFormat>
      <EUCDMID>4/8</EUCDMID>
      <EUCDMFormat>an..1</EUCDMFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <!--<xs:maxLength value="3"/>
                <xs:pattern value=".*[^\s].*"/>-->
      <xs:maxLength value="1"/>
      <xs:pattern value="A|B|C|D|E|G|H|J|K|O|P|R|S|T|U|V"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GoodsMeasureNetNetWeightMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>128</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Attributes
Source

<xs:complexType name="GoodsMeasureNetNetWeightMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>128</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GoodsShipmentExitDateTimeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>024</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
Diagramtoldsystemet_DS_v1_xsd.tmp#GoodsShipmentExitDateTimeType_DateTimeString
Model
Children DateTimeString
Source

<xs:complexType name="GoodsShipmentExitDateTimeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>024</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="DateTimeString">
      <xs:complexType>
        <xs:simpleContent>
          <xs:restriction base="udt:DateTimeType">
            <xs:maxLength value="35"/>
          </xs:restriction>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
Complex Type GoodsShipmentTransactionNatureCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>103</WCOID>
<WCOFormat>n..2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="GoodsShipmentTransactionNatureCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>103</WCOID>
      <WCOFormat>n..2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="2"/>
      <xs:pattern value="([0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GovernmentAgencyGoodsItemStatisticalValueAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>114</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="GovernmentAgencyGoodsItemStatisticalValueAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>114</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GovernmentAgencyGoodsItemTransactionNatureCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>103</WCOID>
<WCOFormat>n..2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="GovernmentAgencyGoodsItemTransactionNatureCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>103</WCOID>
      <WCOFormat>n..2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="2"/>
      <xs:pattern value="([0-9])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type GuaranteeOfficeIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>G014</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="GuaranteeOfficeIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>G014</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type InvoiceIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D016</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="InvoiceIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D016</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type InvoiceIssueDateTimeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D015</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
Diagramtoldsystemet_DS_v1_xsd.tmp#InvoiceIssueDateTimeType_DateTimeString
Model
Children DateTimeString
Source

<xs:complexType name="InvoiceIssueDateTimeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D015</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="DateTimeString">
      <xs:complexType>
        <xs:simpleContent>
          <xs:restriction base="udt:DateTimeType">
            <xs:maxLength value="35"/>
          </xs:restriction>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>
Complex Type InvoiceLineItemChargeAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>112</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="InvoiceLineItemChargeAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>112</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ItineraryRoutingCountryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>064</WCOID>
<WCOFormat>a2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ItineraryRoutingCountryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>064</WCOID>
      <WCOFormat>a2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="2"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type ItinerarySequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Source

<xs:simpleType name="ItinerarySequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type LoadingLocationIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L010</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="LoadingLocationIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L010</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type LoadingLocationNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L009</WCOID>
<WCOFormat>an..256</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="LoadingLocationNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L009</WCOID>
      <WCOFormat>an..256</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="256"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ManufacturerIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R043</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ManufacturerIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R043</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ManufacturerNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R042</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="ManufacturerNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R042</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ObligationGuaranteeAccessCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>499</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ObligationGuaranteeAccessCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>499</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ObligationGuaranteeAmountAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>492</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="ObligationGuaranteeAmountAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>492</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ObligationGuaranteeIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>D014</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ObligationGuaranteeIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>D014</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ObligationGuaranteeReferenceIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>100</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="ObligationGuaranteeReferenceIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>100</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ObligationGuaranteeSecurityDetailsCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>101</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ObligationGuaranteeSecurityDetailsCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>101</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type OriginCountryCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>063</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="OriginCountryCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>063</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type OriginRegionIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>066</WCOID>
<WCOFormat>an..9</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="OriginRegionIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>066</WCOID>
      <WCOFormat>an..9</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="9"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type OriginTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>501</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="OriginTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>501</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingHeightMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>402</WCOID>
<WCOFormat>n..15</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Attributes
Source

<xs:complexType name="PackagingHeightMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>402</WCOID>
      <WCOFormat>n..15</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="15"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingLengthMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>367</WCOID>
<WCOFormat>n..15</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Attributes
Source

<xs:complexType name="PackagingLengthMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>367</WCOID>
      <WCOFormat>n..15</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="15"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingMarksNumbersIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>142</WCOID>
<WCOFormat>an..512</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="PackagingMarksNumbersIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>142</WCOID>
      <WCOFormat>an..512</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="512"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingPackingMaterialDescriptionTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>344</WCOID>
<WCOFormat>an..256</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="PackagingPackingMaterialDescriptionTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>344</WCOID>
      <WCOFormat>an..256</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="256"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>141</WCOID>
<WCOFormat>an..2</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="PackagingTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>141</WCOID>
      <WCOFormat>an..2</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="2"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingVolumeMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>395</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Attributes
Source

<xs:complexType name="PackagingVolumeMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>395</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PackagingWidthMeasureType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>368</WCOID>
<WCOFormat>n..15</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#MeasureType
Type restriction of udt:MeasureType
Type hierarchy
Attributes
Source

<xs:complexType name="PackagingWidthMeasureType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>368</WCOID>
      <WCOFormat>n..15</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:MeasureType">
      <xs:totalDigits value="15"/>
      <xs:fractionDigits value="0"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PayerIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R121</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="PayerIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R121</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PayerNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R120</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="PayerNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R120</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PaymentMethodCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>107</WCOID>
<WCOFormat>a1</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="PaymentMethodCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>107</WCOID>
      <WCOFormat>a1</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="1"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PaymentPaymentAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>378</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="PaymentPaymentAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>378</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PaymentTaxAssessedAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>120</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="PaymentTaxAssessedAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>120</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PointerDocumentSectionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>375</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="PointerDocumentSectionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>375</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type PointerSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Source

<xs:simpleType name="PointerSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type PointerTagIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>381</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="PointerTagIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>381</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type PresentationOfficeIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>G015</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="PresentationOfficeIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>G015</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type RefundRecipientPartyIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R128</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="RefundRecipientPartyIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R128</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type RefundRecipientPartyNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R127</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="RefundRecipientPartyNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R127</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SealIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>165</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="SealIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>165</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type SealSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Source

<xs:simpleType name="SealSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type SellerIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R051</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="SellerIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R051</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SellerNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R050</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="SellerNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R050</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SubmitterRoleCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R005</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="SubmitterRoleCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R005</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SupervisingOfficeIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>G012</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="SupervisingOfficeIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>G012</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SuretyIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R055</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="SuretyIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R055</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type SuretyNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>R054</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="SuretyNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>R054</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type TradeTermsConditionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>090</WCOID>
<WCOFormat>a3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="TradeTermsConditionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>090</WCOID>
      <WCOFormat>a3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:length value="3"/>
      <xs:pattern value="([a-zA-Z])*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type TradeTermsCountryRelationshipCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>106</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="TradeTermsCountryRelationshipCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>106</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type TradeTermsDescriptionTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>089</WCOID>
<WCOFormat>an..70</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="TradeTermsDescriptionTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>089</WCOID>
      <WCOFormat>an..70</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="70"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type TradeTermsLocationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L002</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="TradeTermsLocationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L002</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type TradeTermsLocationNameTextType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L001</WCOID>
<WCOFormat>an..256</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#TextType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#TextType
Type restriction of udt:TextType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
Source

<xs:complexType name="TradeTermsLocationNameTextType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L001</WCOID>
      <WCOFormat>an..256</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:TextType">
      <xs:maxLength value="256"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type TransportEquipmentIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>159</WCOID>
<WCOFormat>an..17</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="TransportEquipmentIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>159</WCOID>
      <WCOFormat>an..17</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="17"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Simple Type TransportEquipmentSequenceNumericType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>006</WCOID>
<WCOFormat>n..5</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#NumericType
Type restriction of udt:NumericType
Type hierarchy
Facets
totalDigits 5
fractionDigits 0
Source

<xs:simpleType name="TransportEquipmentSequenceNumericType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>006</WCOID>
      <WCOFormat>n..5</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:restriction base="udt:NumericType">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="0"/>
  </xs:restriction>
</xs:simpleType>
Complex Type UCRIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>016</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="UCRIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>016</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type ValuationAdjustmentAdditionCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>188</WCOID>
<WCOFormat>an..4</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="ValuationAdjustmentAdditionCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>188</WCOID>
      <WCOFormat>an..4</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="4"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type WarehouseIdentificationIDType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L019</WCOID>
<WCOFormat>an..35</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeDataURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType_schemeURIUnqualifiedDataType_6_DMS_xsd.tmp#IDType
Type restriction of udt:IDType
Type hierarchy
Attributes
QName Type Use
schemeAgencyID AgencyIdentificationCodeContentType optional
schemeAgencyName xsd:string optional
schemeDataURI xsd:anyURI optional
schemeID xsd:token optional
schemeName xsd:string optional
schemeURI xsd:anyURI optional
schemeVersionID xsd:token optional
Source

<xs:complexType name="WarehouseIdentificationIDType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L019</WCOID>
      <WCOFormat>an..35</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:IDType">
      <xs:maxLength value="35"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type WarehouseTypeCodeType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>L112</WCOID>
<WCOFormat>an..3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listAgencyNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listNameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listVersionIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_nameUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_languageIDUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType_listSchemeURIUnqualifiedDataType_6_DMS_xsd.tmp#CodeType
Type restriction of udt:CodeType
Type hierarchy
Attributes
QName Type Use
languageID xsd:language optional
listAgencyID AgencyIdentificationCodeContentType optional
listAgencyName xsd:string optional
listID xsd:token optional
listName xsd:string optional
listSchemeURI xsd:anyURI optional
listURI xsd:anyURI optional
listVersionID xsd:token optional
name xsd:string optional
Source

<xs:complexType name="WarehouseTypeCodeType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>L112</WCOID>
      <WCOFormat>an..3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:CodeType">
      <xs:maxLength value="3"/>
      <xs:pattern value=".*[^\s].*"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type WriteOffAmountAmountType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>503</WCOID>
<WCOFormat>n..16,3</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#AmountType_currencyIDUnqualifiedDataType_6_DMS_xsd.tmp#AmountType
Type restriction of udt:AmountType
Type hierarchy
Attributes
Source

<xs:complexType name="WriteOffAmountAmountType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>503</WCOID>
      <WCOFormat>n..16,3</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:AmountType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="3"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
Complex Type WriteOffQuantityQuantityType
Namespace urn:wco:datamodel:WCO:Declaration_DS:DMS:2
Annotations

<WCOID>502</WCOID>
<WCOFormat>n..16,6</WCOFormat>
Diagram
DiagramUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType_unitCodeUnqualifiedDataType_6_DMS_xsd.tmp#QuantityType
Type restriction of udt:QuantityType
Type hierarchy
Attributes
Source

<xs:complexType name="WriteOffQuantityQuantityType">
  <xs:annotation>
    <xs:documentation>
      <WCOID>502</WCOID>
      <WCOFormat>n..16,6</WCOFormat>
    </xs:documentation>
  </xs:annotation>
  <xs:simpleContent>
    <xs:restriction base="udt:QuantityType">
      <xs:totalDigits value="16"/>
      <xs:fractionDigits value="6"/>
    </xs:restriction>
  </xs:simpleContent>
</xs:complexType>
XML Schema documentation generated by ® XML Developer Trial Edition.
